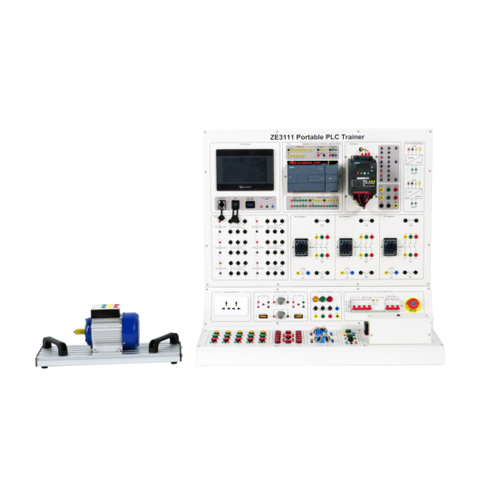

Name: Portable PLC Trainer School Educational Equipment Vocational Trainer Workbench Electrical Training Equipment
Brand: MY SHOP
SKU: ZE3111A
Availability: InStock
Rating: 5 (1 reviews)

Description

ZE3111A Portable PLC Trainer School Educational Equipment Vocational Trainer Workbench Electrical Training Equipment
1. Product Introduction
1.1 Product Description
The product consists of a touch screen, PLC module, frequency converter, intermediate relay, AC contactor, temperature transmitter, motor, etc. It can simulate the operation process of the PLC system, so that students have a preliminary and intuitive understanding of PLC control and frequency converter, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessment of related majors in higher vocational colleges, junior colleges, secondary vocational schools, and technical schools.
1.2 Product Features
1. The equipment adopts a sheet metal frame structure, and the measuring instruments and load modules are installed on the sheet metal frame. The training power supply is built-in and integrated. Each unit is flexible, easy to use, and not easy to damage.
2. The experimental circuits and devices are complete and can be used in combination to complete the training content of various courses.
3. The equipment has a good safety protection system.
2. Technical specifications
2.1 Technical parameters
Equipment power supply: AC 110V
Siemens: 6ES7, 215-1HG40-0XB0, CPU 1215C DC/DC/RLY
Siemens: 6ES7, 223-1PH32-0XB0, SM1223DI 8×24VDC, DQ 8×RLY
Temperature transmitter (4-20mA): pt100 DC24V power supply, -50-150℃
Temperature transmitter (0-10V): pt100 DC24V power supply, -50-150℃
Three-phase squirrel cage asynchronous motor: △/Y voltage: 380/660v, 60Hz, 1500rpm, 180W
2.2 Dimensions and weight
Dimensions: 870mm×470mm×900mm
Weight: ＜61kg

3. Product component names and function introduction
3.1 Product main body

No.	Name
1	Motor
2	Equipment body

3.2 Product electrical part

No.	Name
1	Touch screen module
2	PLC Module
3	Inverter module
4	Current and voltage module input
5	Intermediate relay
6	AC contactor
7	Socket
8	DC output
9	Power output module
10	Circuit breaker module
11	Button module
12	Indicator module
13	Temperature transmitter module
14	Heating module

3.3 Product accessories

No.	Name
1	4mm safety electrical cable(red)
2	4mm safety electrical cable(red)
3	4mm safety electrical cable(red)）
4	4mm safety electrical cable(red)
5	4mm safety electrical cable(red)
6	4mm safety electrical cable(red)
7	2mm safety electrical cable (red)
8	2mm safety electrical cable (red)
9	2mm safety electrical cable (red)
10	2mm safety electrical cable (red)
11	2mm safety electrical cable (red)
12	Industrial waterproof plug (female)
13	Temperature Sensor
14	USB data cable
15	Network cable
16	USB flash drive

4. Product Configuration List

No.	Name	Qty
1	Touch Screen	1
2	Ethernet port	1
3	USB口	1
4	RS232/RS485	1
5	PLC	1
6	PLC expansion module	1
7	Inverter	1
8	4-20mA to 0-10V	1
9	0-10V to 4-20mA	1
10	Intermediate relay	6
11	AC contactor	3
12	Socket	1
13	24V adjustable 0-10V output	1
14	24V adjustable 4-20mA output	1
15	Indicator Light	18
16	Circuit breaker	2
17	Emergency stop knob	1
18	Button	15
19	(0-10V) Temperature Transmitter	1
20	(4-20mA) Temperature Transmitter	1
21	Knob	1

5. Product teaching experiment list
(1) PLC module and button control motor speed experiment through inverter
(2) PLC module and button control motor forward and reverse rotation experiment through contactor
(3) Temperature sensor single test experiment
(4) Equipment PID experiment
